AUTONICS
Compact Digital Panel Meters
M4N Series
● Max display value: 1999
● Auto-zero adjustment and hold display value function
● 7-segment LED display
02-805-5888 info@summitindustech.com
Compact Digital Panel Meters
AUTONICS
Power Factor Display Digital Panel Meters
M4W-P Series
● Digital panel meters for displaying power factor
● Input: DC 4-20 mA (from power factor converter)
● Display: -0.50-1.00-0.50
AUTONICS
Digital Panel Meters for Mosaic Panels
M4V Series
● Various input options: 0-2 VDC, 0-10 VDC, 1-5 VDC, DC 0-1 mA, DC 4-20 mA
● High/low-limit display scale function
● Display range: -999 to 9999
AUTONICS
5-Channel Digital Temperature Indicators
T4WM Series
● Digital temperature indicators
● High accuracy measurement and display: ±0.5%
● 5-channel temperature display
AUTONICS
DIN Rail Switching Mode Power Supplies (3W)
SP Series
● Compact size and high performance
● Built-in overcurrent protection circuit
● DIN rail mount and screw mount methods
AUTONICS
10.1-Inch Panel PC
APC Series
● Microsoft Windows 10 included
● Quad-core processor
● Fanless PC with silent operation and low heating
AUTONICS
Loop-Powered Digital Scaling Meters
M4NS/M4YS Series
● Loop-powered: power supplied by loop current
● Measured input: DC 4-20 mA
● Display range: -1999 to 9999
AUTONICS
Digital Tachometers (Speed Meters)
M4Y/ M5W/ M4W/ M4M (Tachometer / Speed Meter)Series
● Max display value: 19999 (M5W), 1999 (all other models)
● Auto-zero adjustment and hold display value function (except M5W)
● RMS or AVG value selection (AC voltage)
AUTONICS
Compact Digital Pulse Meters (Indicator Only)
LR5N-B Series
● 1-pulse input per revolution
● Display up to 10,000 RPM
● Built-in internal battery (power supply not required)
AUTONICS
Digital Panel Meters with Diverse Input/Output Options
MT4Y/ MT4W Series
● Various input/output options (by model)
● Maximum allowed input: 500 VDC, DC 5 A, 500 VAC, AC 5 A
● Display range: -1999 to 9999
AUTONICS

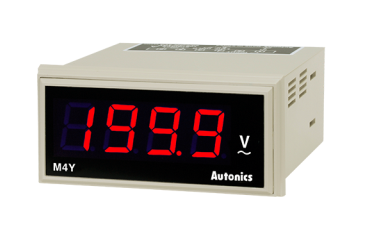

Digital Voltmeters
M4Y/ M5W/ M4W/ M4M (Voltmeter)Series
● Max display value: 19999 (M5W), 1999 (all other models)
● Auto-zero adjustment and hold display value function (except M5W)
● RMS or AVG value selection (AC voltage)
 series_00.png)
AUTONICS
Digital Wattmeters
M4Y/ M5W/ M4W/ M4M (Wattmeter)Series
● Max display value: 19999 (M5W), 1999 (all other models)
● Display output values (0-10 VDC) from power converters (options available for DC 4-20 mA, 1-5 VDC)
● Auto-zero adjustment and hold display value function (except M5W)
AUTONICS
Digital Counter/Timer Indicators (Indicator Only)
FXY Series
● Counting speeds: 1 cps / 30 cps / 2 kcps / 5 kcps
● Switch between voltage input (PNP) and no-voltage input (PNP) using DIP switch
● Operation modes: count-up, count-down, count-up/down (counter)
AUTONICS
Standard Digital Counter/Timers
FXM/FXH Series
● Counting speeds: 1 cps / 30 cps / 2 kcps / 5 kcps
● Switch between voltage input (PNP) and no-voltage input (PNP) using DIP switch
● Operation modes: count-up, count-down, count-up/down
AUTONICS
Programmable Digital Counter/Timers
CT Series
● Integrated counter/timer unit for counting and timing applications
● RS485 (Modbus RTU) communication (communication models)
● One-shot output time: 0.01 s to 99.99 s
AUTONICS
8-Pin Plug Type Sensor Controllers
PA-12 Series
● 110/220 VAC dual voltage
● NPN/PNP input switch
● High contact capacity (250 VAC, 3A resistive load)
AUTONICS
LCD Display Counter/Timer
CX Series
● LCD display with easy-to-read white PV characters
● Input type: voltage input (PNP) / no-voltage input (NPN) selectable (through parameter setting), universal voltage input type available
● One-shot output time: 0.01 to 99.99 seconds (in 0.01 second increments)
AUTONICS
Digital Measure Counters
FM Series
● Counting speeds: 1 cps / 30 cps / 300 cps / 2 kcps / 5 kcps
● Measure counting: multiply-mode / divide-mode
● Operation modes: count-up, count-down, count-up/down
AUTONICS
Compact 8-Digit LCD Digital Counters (Indicator Only)
LA8N Series
● Compact size: DIN W 48 × H 24 × L 54 mm
● Built-in lithium battery (operates without external power supply)
● Input signal types: no-voltage input, voltage input, AC/DC universal voltage input
AUTONICS
8-Pin Plug Type Digital Counters
FS Series
● Counting speeds: 1 cps / 30 cps / 2 kcps / 5 kcps
● Switch between voltage input (PNP) and no-voltage input (PNP) using DIP switch
● Decimal point display function (fixed decimal point)
